Compact Filter – GVA (E12-H13) Series

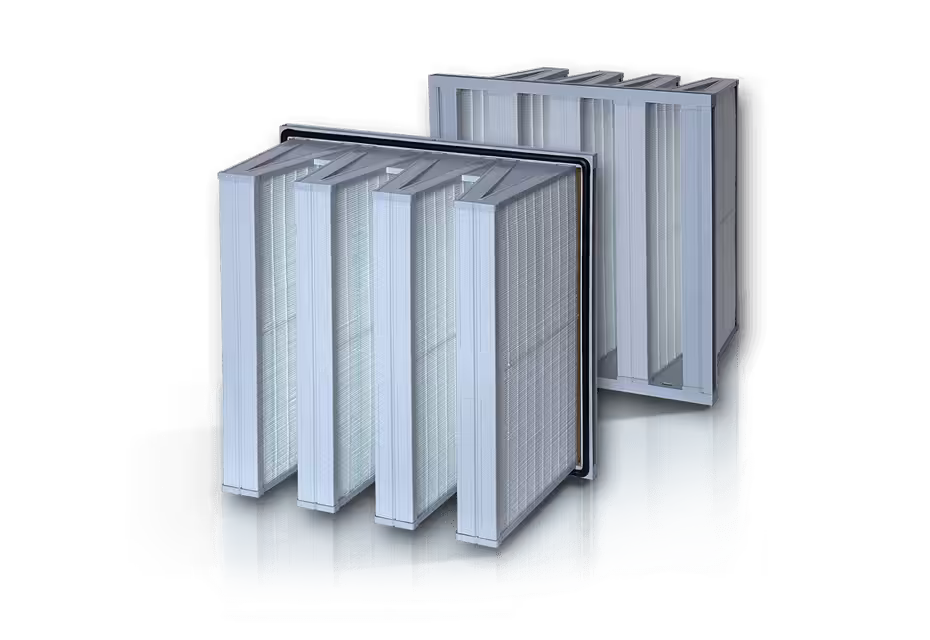

Compact HEPA Filter Type GVA

Design

The side covers are made from rigid polyurethane forming in combination with zinc coated profiles on the top and the bottom. This design provides the maximum space for the filter media pack and obtains an extremely high mechanical strength. The fibreglass media pleated in ‘Minipleat shape’ forms one continuous media and is cast in V-shape technology directly into the frame-sealant material. This design gives an absolutely tight media-frame connection in correlation to a highly active filter surface with a minimal pressure drop. The filters are supplied with a flat flange for a secure seal between the filter and each standard holding frame.

Testing

Each HEPA-filter is tested and packed in accordance with American Standard IEST-RP-CC-001.3 (HEPA and ULPA Filters) or in accordance with the European Standard EN 1822-1, 4&5 (Testing filter elements HEPA and ULPA efficiency and scan method) or other customer requested testing.

Features
  • Efficiencies of 99.97 % up to 99.99 %
  • High quality glass fibre paper
  • Lowest initial pressure drop
  • High quality standard due to Quality Assurance System
  • Highly economic through high final pressure drop
  • Any airflow direction possible making installing easy
  • Rigid frame
  • High quality glass fibre paper
  • Zinc coated profiles
  • Filter height only 292mm
  • High quality standard due to Quality Assurance System
  • High burst pressure (> 2000 Pa)
  • Highly economical through high final pressure drop
  • Useable in two flow directions
  • Filter tested according to BS EN 1822
Standards
  • ASHRAE 52.1
  • ISO 9001:2000
  • EN 779

The Compact HEPA-Filter GVA is designed and tested to extract the smallest particles out of the air. Each GVA Compact HEPA-Filter contains ten ‘Minipleat-Papercakes’ pleated in one piece and assembled in V-shape technology to achieve the lowest pressure drop results.

> Air Filters

Air Filters

Panel / Compact Filters

One of the most common air filtration products (high efficiency filtration) are panel filters and compact filters, applied in a variety of industries. These include filters for HVAC, cleanrooms, clean environments, healthcare facilities, laboratories, and more.

Both the panel filter and the compact filter (also known as v-shape or v-bank filter) are based on a pleated structure. It is this structure that allows greater quantities of air to pass through the filter, while reducing pressure and accumulating more dust and particles within the filter due to increase of the filtration area.

The Filt-Air panel filters and compact filters offer customers advantages:

  • Septal sizes tailored to your needs. In addition to standard filter sizes, we are able to deliver almost any size required.
  • Precise pleating technology. This unique capability ensures greater efficiency and durability over time.
  • Customized production of filter frames using a variety of materials (including. ABS, coated steel, and stainless steel), latches and handles, to meet specific standards and regulations.

Terminal Filter

Clean environments often require terminal filters that can be connected directly to the air supply or the planum.

Clean areas such as cleanrooms face a range of filter challenges, including lack of ceiling space, filter maintenance, and filter replacement. Yet with our terminal filters, you need not worry.

Over the past two decades, Filt-Air has delivered large quantities of terminal filters to a range of facilities and industries, including pharma, security, and microelectronics.

The Filt-Air terminal filters provide a range of unique advantages, including:

  • Innovative designs
  • Flexible filter housing sizes
  • Simple-to-replace filters – and simple to access
